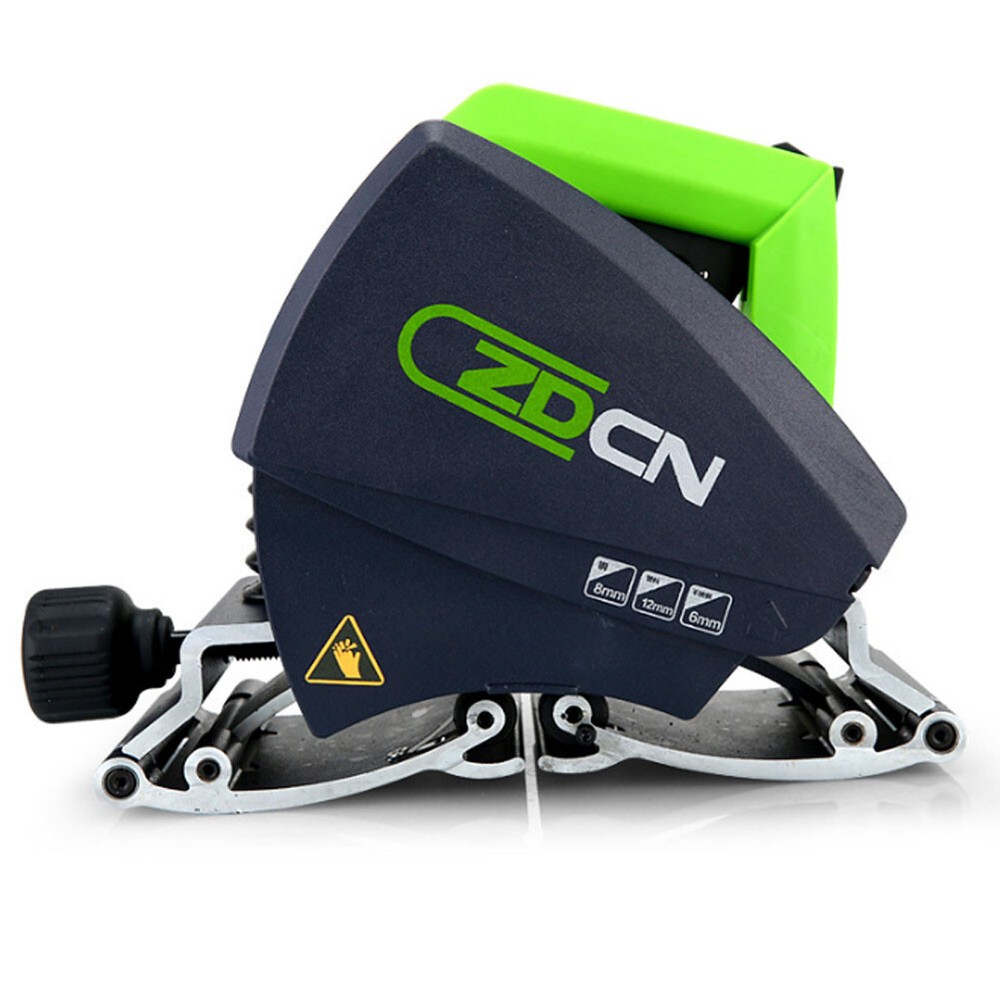

110V Stainless Iron Steel Pipe Cutting Machine Electric Tube Cutter Pipe Sawing
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| MPN | Does Not Apply |
| Power | 1000W |
| Cutting Range | 15-220mm |
| Speed | 0-3200r/min |
| Saw Blade Center Hole | 62mm |
| Saw Blade Diameter | 140mm |
| Cutter Type | steel and plastic |
| Maximum Pipe Size | 22cm OD |
| Voltage | AC110V |
DESCRIPTION: Description: It is lightweight, easy to carry and easy to operate on-site. You can use it to cut steel, plastic, copper, cast iron, stainless steel and multi-layer tubes. Parameter: Model Pipe Cutting Machine Voltage AC110V Power 1000W Speed 1600-3500r/min Saw blade center hole 62mm Saw blade diameter 140mm Cutting range 12-220mm Cutting tube wall thickness Steel:8mm Plastic: 12mm Stainless steel: 6mm Weight 7.2KG Steps for usage: 1, turn on the power switch, in the saw blade after the high-speed operation to press down; 2, the right hand to hold the machine to push forward and then with the left hand gently turns round tube, left and right hand to coordinate with, until the saw tube; 3, each cutting before the need to check whether the blade wear and tear, the blade is damaged or white when the need to timely grinding saw blade; cut hard or thick pipe is recommended to cut once a time; 4, saw blade wear and tear when the soon replacement; 5, is not allowed to run the machine for a long time overload Instructions: 1, release the blade protection cover screws; 2, the machine is on its own, saw blade saw tooth direction towards the left; 3, fitted with saw blade, pressure on the self-locking pin, tighten the hexagonal screws, Fitted with protective cover; 4, release the elastic plastic handball, open the size of the arch plate, adjust the size of the tube to the size, and then tighten the plastic handball, semi-closed size arch board (Note: can not screw too tight); 5, to ensure that the big support on the four bearings and for the plate on the two eccentric wheel and two anti-round wheel close contact with the tube; 6, plug in the power; 7, press the switch, press the machine, to ensure that the lock from the lock lock the machine until the tube cut to complete; 8, release the self-pin switch, release the loose plastic handball to remove the machine. Package Included: 1 x Pipe cutting machine 1 x saw blade 4 x carriage with wheels 1 x wrench 1 x Oxford Canvas Carrying Bag
